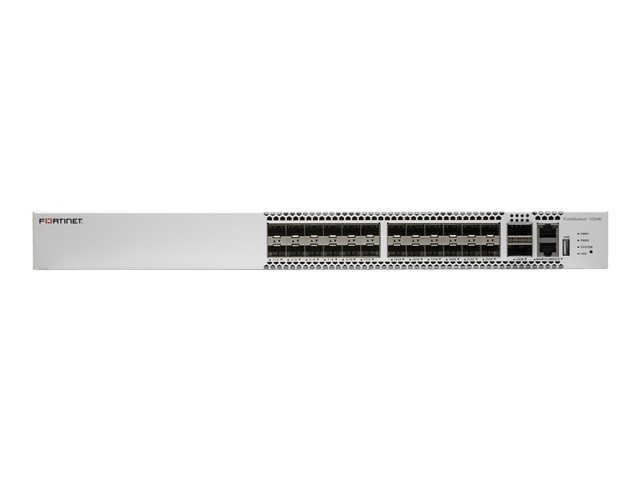

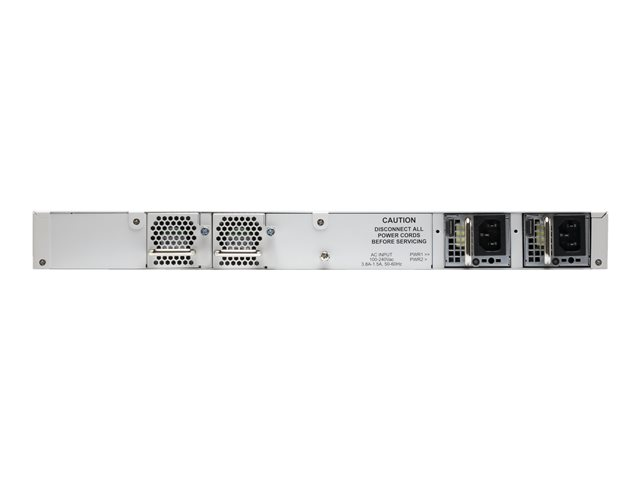

FortiSwitch-1024E Layer 2/3 FortiGate switch controller compatible switch with 24 x GE/10GE SFP/SFP+ slots and 2 x 100GE QSFP28. Dual AC power supplies - Front FortiSwitch-1024E Layer 2/3 FortiGate switch controller compatible switch with 24 x GE/10GE SFP/SFP+ slots and 2 x 100GE QSFP28. Dual AC power supplies - Back

FortiSwitch-1024E Layer 2/3 FortiGate switch controller compatible switch with 24 x GE/10GE SFP/SFP+ slots and 2 x 100GE QSFP28. Dual AC power supplies
2 in stock
Manufacturer Fortinet
Part number FS-1024E
  • Log in for price
Add to basket
  • Information
  • Specifications
    Specifications
    Product DescriptionFortinet FortiSwitch 1024E - switch - 24 ports - Managed - rack-mountable
    Device TypeSwitch - 24 ports - Managed - stackable
    Enclosure TypeFront to back airflow rack-mountable 1U
    Subtype100 Gigabit Ethernet
    Ports24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28
    PerformanceSwitching capacity: 880 Gbps
    Packets per second: 1309 Mpps
    Latency: 1 µs
    CapacityACL entries: 18000
    Routing entries: 24000
    Queues per port: 8
    Packet buffer size: 8 MB
    Host entries: 24000
    VLANs supported: 4000
    Maximum aggregation groups: 24
    Queues per port: 8
    MAC Address Table Size64K entries
    Jumbo Frame SupportYes
    Routing ProtocolIS-IS, RIP-2, BGP, VRRP, OSPFv2, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD)
    Remote Management ProtocolSNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
    FeaturesFlow control, firewall protection, auto-negotiation, IGMP snooping, Syslog support, port mirroring, store and forward, High Availability, SNTP support, sFlow, STP support, RSTP support, MSTP support, priority-based flow control, DHCP snooping, ACL support, DAI, STP Root Guard, DHCP relay, LACP, IP-MAC binding, DHCP client, GVRP, 802.1x authentication, 16MB packet buffer, ToS, cut-through, Storm Control, Back Pressure Support, LLDP-MED, Private VLAN, MAC based VLAN, VLAN Tagging, port-based VLAN, port trunking, black list, IP forwarding support, white list, FortiLink Mode, MAB, Telnet server, DSCP based ToS, MC-LAG, LAG, RESTful APIs
    Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qbb
    PowerAC 100-240 V (50/60 Hz)
    Power RedundancyYes
    Dimensions (WxDxH)43.85 cm x 46 cm x 4.35 cm
    Weight6.58 kg
    Manufacturer WarrantyLimited lifetime warranty
  • Extended specifications
  • Accessories
  • Downloadable files

We reserve the right for errors and changes in product information and images.
