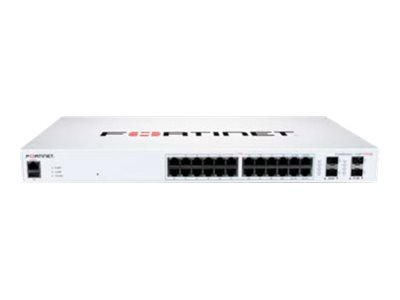

FortiSwitch-124F-FPOE Layer 2 FortiGate switch controller compatible PoE+ switch with 24x 1G RJ45 with PoE+ and 4x 10G/1G SFP+/SFP ports and 1x RJ45 console port. Max 370W PoE output limit with smart fan/temperature control.
1
in stock
Manufacturer
Fortinet
Part number
FS-124F-FPOE
Copied
-
Log in for price
-
Information
-
Specifications
Specifications Product Description Fortinet FortiSwitch 124F-FPOE - switch - 24 ports - Managed - rack-mountable Device Type Switch - 24 ports - Managed Enclosure Type Side to back airflow rack-mountable 1U Subtype Gigabit Ethernet Ports 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ Power Over Ethernet (PoE) PoE+ PoE Budget 370 W Performance Switching capacity: 128 Gbps
Packets per second: 190 Mpps
Latency: < 1 µsCapacity VLANs supported: 4000
Link aggregation groups: 8MAC Address Table Size 32K entries Jumbo Frame Support Yes Remote Management Protocol SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, QoS, DAI, STP Root Guard, LLDP support, DHCP relay, LACP, Energy Efficient Ethernet, 2MB packet buffer, 802.1x authentication, Storm Control, LLDP-MED, STP BPDU Guard, VLAN Tagging Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz Power AC 120/230 V (50/60 Hz) Dimensions (WxDxH) 33 cm x 26 cm x 4.4 cm Weight 3.82 kg Manufacturer Warranty Limited lifetime warranty -
Extended specifications
-
Accessories
-
Downloadable files
We reserve the right for errors and changes in product information and images.
