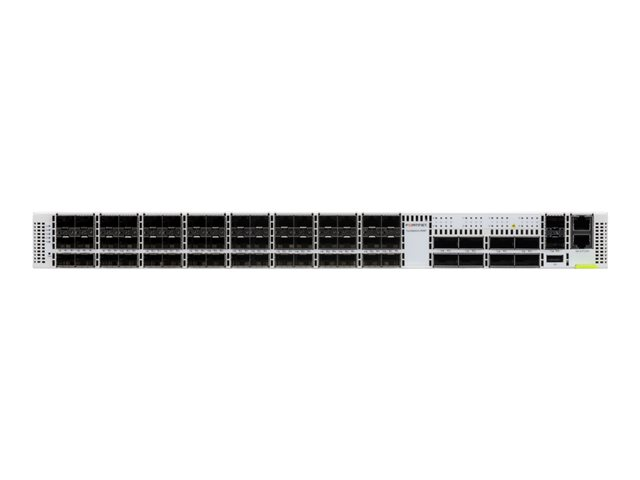

FortiSwitch-2048F Layer 2/3 FortiGate switch controller compatible switch with 48x25G(SFP28) +8x100G (QSFP28)+2x10G(SFP+). Dual AC power supplies - Front

FortiSwitch-2048F Layer 2/3 FortiGate switch controller compatible switch with 48x25G(SFP28) +8x100G (QSFP28)+2x10G(SFP+). Dual AC power supplies
Available on-demand
Manufacturer Fortinet
Part number FS-2048F
  • Log in for price
Add to basket
  • Information
  • Specifications
    Specifications
    Product DescriptionFortinet FortiSwitch 2048F - switch - 48 ports - Managed - rack-mountable
    Device TypeSwitch - 48 ports - Managed - stackable
    Enclosure TypeFront to back airflow rack-mountable 1U
    Subtype100 Gigabit Ethernet
    Ports48 x 1/10/25 Gigabit SFP28 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28
    PerformanceSwitching capacity: 4000 Gbps
    Switching capacity (64-byte packet size): 4000 Mpps
    Packets per second: 1310 Mpps
    Latency: < 1 µs
    Packet buffer size: 32 Mbit
    CapacityACL entries: 3000
    Host entries: 16000
    MAC addresses: 144000
    VLANs supported: 4000
    Maximum aggregation groups: 48
    Queues per port: 8
    Multicast routes: 8000
    IPv4 routes: 16000
    IPv6 routes: 8000
    MAC Address Table Size128K entries
    Jumbo Frame SupportYes
    Routing ProtocolOSPF, RIP, IS-IS, BGP, VRRP, static IP routing, PIM-SSM, VXLAN
    Remote Management ProtocolSNMP 1, RMON 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, MIB
    FeaturesALERT notification, load balancing, WOL, IGMP snooping, Syslog support, port mirroring, IPv6 support, High Availability, SNTP support, sFlow, DHCP snooping, RADIUS support, DHCP server, MLD snooping, DAI, ECMP, BFD, URPF, LLDP support, DHCP relay, RSPAN, IP-MAC binding, VRF, static routing, IGMP proxy, MACsec support, MLD proxy, IP source guard, ECN, VXLAN, policy based routing, IGMP querier, MLAG, LLDP-MED, RA guard, ERSPAN, MAB, SPAN mode, MLD querier, LLDP Neighbor Discovery, ACL support, Ingress ACL, dynamic packet capture, sticky MAC
    Compliant StandardsIEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1Qbb
    PowerAC 100-240 V (50 - 60 Hz)
    Power RedundancyYes
    Dimensions (WxDxH)43.85 cm x 46 cm x 4.35 cm
    Weight9.88 kg
    Manufacturer WarrantyLimited lifetime warranty
