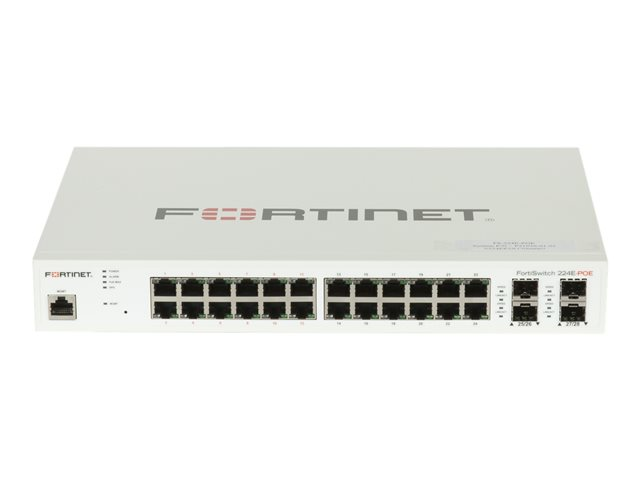

FortiSwitch-224E-POE Layer 2/3 FortiGate switch controller compatible PoE+ switch with 24 x GE RJ45 ports, 4 x GE SFP, with automatic Max 180W POE output limit

2 in stock

Manufacturer Fortinet

Part number FS-224E-POE

Specifications
Product Description	Fortinet FortiSwitch 224E-POE - switch - 28 ports - Managed - rack-mountable
Device Type	Switch - 28 ports - L3 - Managed
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	12 x 10/100/1000 (PoE+) + 12 x 10/100/1000 + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	180 W
Performance	Switching capacity: 48 Gbps Packet transfer capability: 83 Mpps Latency: 1 µs
Capacity	Virtual interfaces (VLANs): 4000 Link aggregation groups: 14 Link aggregation groups: 8 Buffer capacity (MB): 1.5 MB MSTP instances: 15 Routing entries: 64 Host entries: 4000 ACL entries: 512
MAC Address Table Size	16000 entries
Jumbo Frame Support	Yes
Routing Protocol	RIP-2, VRRP, OSPFv2
Remote Management Protocol	SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Features	Flow control, auto-negotiation, IGMP snooping, port mirroring, SNTP support, sFlow, STP support, RSTP support, MSTP support, DHCP snooping, Jumbo Frames support, DAI, TDR, BFD, LLDP support, DHCP relay, LACP, IP-MAC binding, MIB, static routing, tagged VLAN, ToS, DSCP support, Storm Control, Root Guard, MLAG, Private VLAN
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX
Power	AC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH)	33 cm x 23 cm x 4.4 cm
Weight	2.44 kg
Manufacturer Warranty	Limited lifetime warranty
