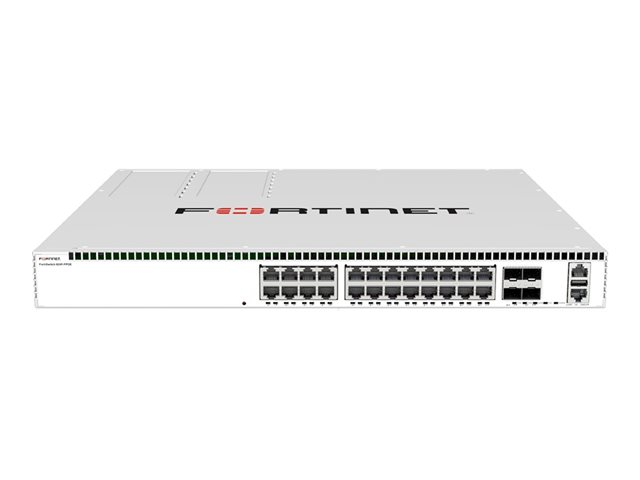

FortiSwitch-624F-FPOE Layer 2/3 FortiGate switch controller compatible PoE 802.3bt switch with 24x 5G RJ45 ports, 4x 25G SFP28 and MACSec. Max 1400W POE output limit - Front

FortiSwitch-624F-FPOE Layer 2/3 FortiGate switch controller compatible PoE 802.3bt switch with 24x 5G RJ45 ports, 4x 25G SFP28 and MACSec. Max 1400W POE output limit
Available on-demand
Manufacturer Fortinet
Part number FS-624F-FPOE
  • Log in for price
Add to basket
  • Information
  • Specifications
    Specifications
    Product DescriptionFortinet FortiSwitch 624F-FPOE - switch - 24 ports - Managed - rack-mountable
    Device TypeSwitch - 24 ports - L3 - Managed
    Enclosure TypeBack to front airflow rack-mountable 1U
    Subtype5 Gigabit Ethernet
    Ports24 x 10/100/1000/2.5G (PoE++) + 4 x 25 Gigabit SFP28
    Power Over Ethernet (PoE)PoE++
    PoE Budget1400 W
    PerformanceSwitching capacity: 440 Gbps
    Forwarding performance: 654 Mpps
    Latency: 1 µs
    CapacityVirtual interfaces (VLANs): 4000
    Maximum aggregation groups: 28
    Packet buffer size: 8 MB
    ACL: 36000
    Spanning Tree Protocol instances: 32
    IPv4 routing entries: 16000
    Host IPv4 routes: 192000
    IP multicast entries: 12000
    MAC Address Table Size64K entries
    Jumbo Frame SupportYes
    Routing ProtocolPolicy-based routing (PBR), MSTP, MLD, IGMP, OSPFv2, RIP-2, VRRP, BGP, IS-IS, PIM-SSM, ECMP, Bidirectional Forwarding Detection (BFD), URPF, OSPF
    Remote Management ProtocolSyslog, DHCP, IPv4, IPv6, Telnet, SSH, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, CLI, TFTP, RMON
    FeaturesMACsec support, IGMP snooping, 802.1x authentication, DHCP snooping, MAC black/whitelist, NAC, auto-negotiation, MDI, Auto MDIX, STP Root Guard, STP BPDU Guard, Private VLAN, port trunking, VLAN support, Storm Control, TDR, RPVST, Loop Guard, VLAN / port mapping, automatic topology detection, IGMP proxy, IGMP querier, MLD snooping, MLD proxy, MLD querier, DHCP relay, DHCP server, port mirroring, MAB, IP-MAC binding, sFlow, ACL support, ARP inspection, IP source guard, RA guard, WOL, High Availability, QoS, PTP, MC-LAG, SNTP support, FTP support, SPAN mode, RSPAN, ERSPAN
    Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1AX, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.1ae, IEEE 802.1Qbb, IEEE 802.1ad, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1p
    PowerAC 100-240 V (50/60 Hz)
    Dimensions (WxDxH)44 cm x 35 cm x 4.4 cm
    Weight7.407 kg
    Manufacturer WarrantyLimited lifetime warranty
  • Extended specifications
  • Accessories
  • Downloadable files

We reserve the right for errors and changes in product information and images.
