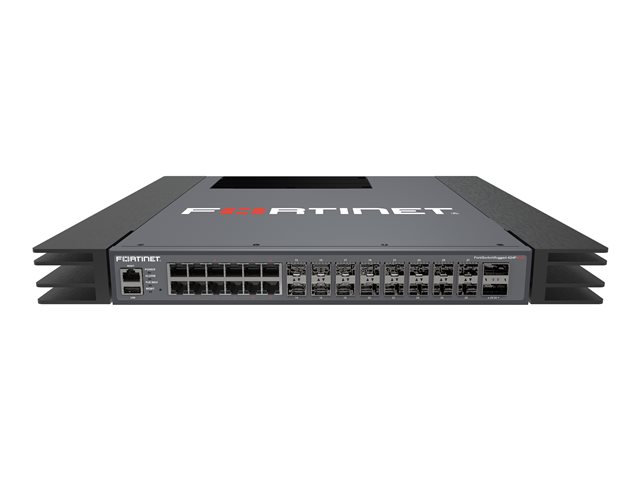

FortiSwitchRugged-424F-POE Layer 2/3 ruggedized FortiGate switch controller compatible switch 12x 2.5 GE RJ45, 12x 2.5 GE SFP+, 4x 10 GE SFP+ and 2x 40 GE QSFP+, 12 port PoE UPOE (60W) with maximum 420W limit. IP40 rating. - Front

FortiSwitchRugged-424F-POE Layer 2/3 ruggedized FortiGate switch controller compatible switch 12x 2.5 GE RJ45, 12x 2.5 GE SFP+, 4x 10 GE SFP+ and 2x 40 GE QSFP+, 12 port PoE UPOE (60W) with maximum 420W limit. IP40 rating.
Available on-demand
Manufacturer Fortinet
Part number FSR-424F-POE
  • Log in for price
Add to basket
  • Information
  • Specifications
    Specifications
    Product DescriptionFortinet FortiSwitch Rugged 424F-POE - switch - 24 ports - Managed - rack-mountable
    Device TypeSwitch - 24 ports - L3 - Managed
    Enclosure TypeRack-mountable
    Subtype2.5 Gigabit Ethernet
    Ports12 x 2.5GBase-T (UPOE) + 12 x 1/2.5 Gigabit SFP+ + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
    Power Over Ethernet (PoE)UPOE
    PoE Budget421 W
    PerformanceSwitching capacity: 360 Gbps
    Packets per second: 584 Mpps
    Latency: < 1 µs
    CapacityVLANs supported: 4000
    Link aggregation groups: up to 24
    Queues per port: 8
    Packet buffer size: 4 MB
    ACL: 1500
    Spanning Tree Protocol instances: 16
    MAC Address Table Size32K entries
    Jumbo Frame SupportYes
    Routing ProtocolOSPF, BGP-4, IS-IS, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-SSM, ECMP, MLD, Bidirectional Forwarding Detection (BFD), URPF, MSTP, RSTP, STP
    Remote Management ProtocolSNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, Syslog, MIB, TCP/IP, UDP
    FeaturesFirewall protection, auto-negotiation, VLAN support, WOL, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, automatic topology detection, High Availability, SNTP support, sFlow, DHCP snooping, ACL support, DHCP server, MLD snooping, DAI, TDR, STP Root Guard, fanless, LLDP support, DHCP relay, RSPAN, NetFlow, IP-MAC binding, NAC, policy based access control, IPFIX, IGMP proxy, 802.1x authentication, Storm Control, MLD proxy, IP source guard, PRP, policy based routing, IGMP querier, Loop Guard, HSR, LLDP-MED, Private VLAN, RA guard, STP BPDU Guard, SPAN, ERSPAN, DSCP based ToS, MC-LAG, LAG, MRP, MLD querier, Zero-Touch Deployment, VLAN / port mapping, auto-discovery, MAC black/whitelist, FTP support, RPVST, UTM
    Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 1588v2, IEEE 1613, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz
    Power RedundancyYes
    Dimensions (WxDxH)44 cm x 41 cm x 4.4 cm
    Weight6.293 kg
    Manufacturer WarrantyLimited lifetime warranty
  • Extended specifications
  • Accessories
  • Downloadable files

We reserve the right for errors and changes in product information and images.
